Mains and Emergency Speedfit Shaft Lighting kit

Mains and Emergency Speedfit Shaft Lighting kit

Speedfit Emergency Start up Kit.

This is for use with mains or Emergency fittings, in either 2ft (600mm) or 4ft (1200mm)

To order the 2ft or 4ft lights for this kit, follow this link.

Speedfit Fittings

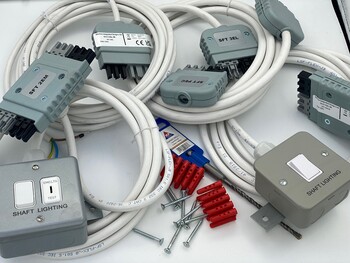

The kit comprises of

  • Mains 3 core starter lead 5 metres
  • 3 Metre Extension Lead
  • Emergency Test Switch(first in circuit)
  • Type B Switch(last in circuit)
  • Fused Spur Engraved 'Shaft Lighting'
  • End Cap
  • Screws, Rawlplugs and a drill bit
  • 4 inch White cable ties and screw down bases
  • Screws, Rawlplugs and a drill bit

Note that for kits of 15 floors or more, there may be a requirement for an additional supply circuit, dependent on current draw and voltage drop.

Technical Installation Drawing

To view the Technical Installation Drawing please click the appropriate link below:-

Adobe PDF Reader required

Viewing the PDF Data Sheets requires the Adobe PDF Reader which you can download for free by clicking the link below.

Get Adobe Reader
To order any the products below enter the quantities required in the appropriate box or boxes. You can also use the up and down arrows to increment the quantities. If you wish to add any of the products to your favourites tick the boxes to the right. When you have selected all required products click the 'Add to Basket/Favourites' button.
