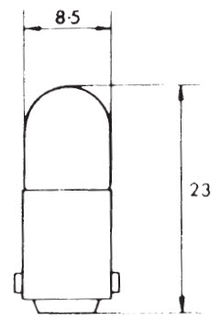

Ba9s (MCC) R9 Tubular

Ba9s (MCC) R9 Tubular

We hold an extensive range of indicator lamps and selecting the correct one is not always straight forward.

Indicator lamps are grouped into 4 base types:

  • Ba9s (MCC) - Miniature Centre Contact.
  • E10 (MES) - Miniature Edison Screw.
  • Ba15d (SBC) - Small Bayonet Cap.
  • PSB - Push Slide Base.
R9 Tubular Sort Code Voltage (Watts) Rating
9/12/1.2/B 12 1.0-1.2
9/12/2/B 12 2.0-2.2
9/12/3/B 12 3
9/24/1.2/B 24 1.0-1.2
9/24/2/B 24 2.0-2.2
9/24/3/B 24 3
9/130/2.6/B 130 2.0-2.6
To order any the products below enter the quantities required in the appropriate box or boxes. You can also use the up and down arrows to increment the quantities. If you wish to add any of the products to your favourites tick the boxes to the right. When you have selected all required products click the 'Add to Basket/Favourites' button.

Order Code Description Qty Required FAV+
9/12/1.2/B R9 Tubular 12 Watt 1.0-1.2
9/12/2/B R9 Tubular 12 Watt 2.0-2.2
9/12/3/B R9 Tubular 12 Watt 3
9/24/1.2/B R9 Tubular 24 Watt 1.0-1.2
9/24/2/B R9 Tubular 24 Watt 2.0-2.2
9/24/3/B R9 Tubular 24 Watt 3
9/130/2.6/B R9 Tubular 130 Watt 2.0-2.6
