0.75mm Multi-Stranded 2491X

0.75mm Multi-Stranded 2491X

Application

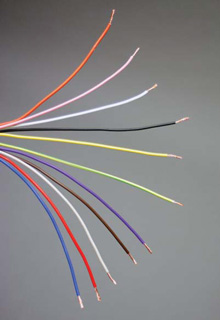

Multi-Stranded 2491X cable is designed for use with instrument and control panels.

Construction

Thin stranded plain annealed copper conductor with a PVC insulation.

Technical Data

Voltage = 450/750V.

Temperature Range = -15 to +70°C.

Relevant Standards

To BS6500.

Order Code Colour
.752491XBLK Black
.752491XBRN Brown
.752491XGRY Grey
.752491XBLU Blue
.752491XEAR Earth
.752491XRED Red
.752491XYEL Yellow
.752491XORA Orange
.752491XPIN Pink
.752491XVIO Violet
.752491XWHI White

Note: All cables are 100mts in length.

Dimensions: Outside diameter = 2.9mm

Approx Rating: 9 Amps

Example: 100mts .752491XGRY = 100mts x 0.75mm 2491X Grey.

To order any the products below enter the quantities required in the appropriate box or boxes. You can also use the up and down arrows to increment the quantities. If you wish to add any of the products to your favourites tick the boxes to the right. When you have selected all required products click the 'Add to Basket/Favourites' button.

Order Code Description Qty Required FAV+
.752491XBLK Black 0.75mm 2491X
.752491XBRN Brown 0.75mm 2491X
.752491XGRY Grey 0.75mm 2491X
.752491XBLU Blue 0.75mm 2491X
.752491XEAR Earth 0.75mm 2491X
.752491XRED Red 0.75mm 2491X
.752491XYEL Yellow 0.75mm 2491X
.752491XORA Orange 0.75mm 2491X
.752491XPIN Pink 0.75mm 2491X
.752491XVIO Violet 0.75mm 2491X
.752491XWHI White 0.75mm 2491X
