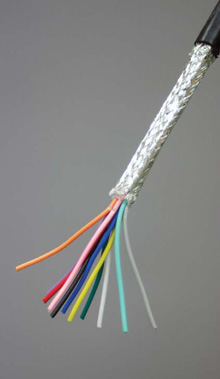

Defence Standard Multicore Screened Tacho Cable

Application

Multicore screened tacho cable is designed for high density wiring between components and within instruments and electronic equipment. It is also extensively used in process control systems, computers, data processors and data control. It is also used in situations where electro-magnetic interference is a problem.

Construction

Tinned copper strand conductor with a PVC insulation and a black PVC sheath.

The screen consists of a TCWB (Tinned Copper Wire Braid).

Technical Data

Voltage: 440V (up to 1.6kHz).

Temperature Range: -5 to + 70°C.

Conductor Resistance: 79 ohms/km.

Relevant Standards

Defence Standard 61/12 Part 4.

Order Code	Description	Overall Diameter (mm)	Stranding (mm)	Clip Ref
TACH4	4 Core Screened Tacho Cable	3.85	7/0.22	RC3.5
TACH8	8 Core Screened Tacho Cable	6.10	7/0.22	RC7
TACH12	12 Core Screened Tacho Cable	7.24	7/0.22	RC7
TACH18	18 Core Screened Tacho Cable	8.53	7/0.22	RC9
TACH25	25 Core Screened Tacho Cable	9.81	7/0.22	RC9

Example: TACH8 = 8 Core Screened Tacho Cable.

To order any the products below enter the quantities required in the appropriate box or boxes. You can also use the up and down arrows to increment the quantities. If you wish to add any of the products to your favourites tick the boxes to the right. When you have selected all required products click the 'Add to Basket/Favourites' button.

Order Code	Description	Qty Required	FAV+
TACH4	4 Core Screened Tacho Cable
TACH8	8 Core Screened Tacho Cable
TACH12	12 Core Screened Tacho Cable
TACH18	18 Core Screened Tacho Cable
TACH25	25 Core Screened Tacho Cable
