Limit Switch and Mounting Plate

Limit Switch and Mounting Plate

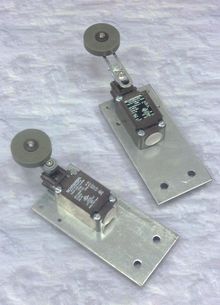

The limit switch and mounting plate can also be ordered separately. The switch is supplied pre-fixed to a 3mm thick steel plate (170 x 80mm). An additional 5mm diameter hole in the plate offers an alternative fixing position for the limit switch. The mounting plate also contains two pre-drilled 9mm diameter holes, permitting fixing to either preexisting or new support systems.

Order Code Description
LSP1 Mounting Plate Assembly - c/w Fixed Arm Limit Switch
LSP1/A Mounting Plate Assembly - c/w Adjustable Arm Limit Switch
To order any the products below enter the quantities required in the appropriate box or boxes. You can also use the up and down arrows to increment the quantities. If you wish to add any of the products to your favourites tick the boxes to the right. When you have selected all required products click the 'Add to Basket/Favourites' button.

Order Code Description Qty Required FAV+
LSP1 Mounting Plate Assembly - c/w Fixed Arm Limit Switch
LSP1/A Mounting Plate Assembly - c/w Adjustable Arm Limit Switch
