(Low Smoke Zero Halogen) YYLSOH Control Flex
Application
YYLS0H control flex is designed for use in areas where fire, smoke emission or toxic fumes would create a potential threat to life and equipment.
It is used in the machine control and data processing industry where extra flexibility is critical. It is suitable for fixed installations or for flexible use in conditions of light mechanical stress. It can be used outdoors when protected, and in dry or moist conditions indoors.
Construction

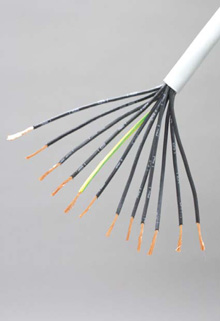

Plain stranded flexible copper conductor with a XLPE (cross linked polyethylene) insulation and a LS0H (Low smoke zero halogen) sheath.
Cores are black with white numbers with the exception of the earth cable.
Technical Data
Voltage: 300/500V.
Temperature Range: -5 to +85°C.
Relevant Standards
To BS6500 and VDE 0250.
Colours Available
Grey only.
Drum Sizes
Cut to size.
| Order Code | Description | Overall Diameter (mm) | Suitable Gland (mm) | Suitable Lockring (mm) | Suitable Clip | Approx Rating (amps) |
|---|---|---|---|---|---|---|
| 1.07CLSFYY | 1.0mm 7 Core LS0H | 7.4 | PD427 | 20 | RC9 | 11 |
| 1.012CLSFYY | 1.0mm 12 Core LS0H | 9.9 | PD427 | 20 | PC10 | 11 |
| 1.018CLSFYY | 1.0mm 18 Core LS0H | 11.7 | PD427 | 20 | PC12 | 11 |
| 1.025CLSFYY | 1.0mm 25 Core LS0H | 14.3 | PD428 | 25 | PC16 | 11 |
| 1.57CLSFYY | 1.5mm 7 Core LS0H | 9.2 | PD427 | 20 | PC10 | 16 |
| 1.512CLSFYY | 1.5mm 12 Core LS0H | 11.6 | PD427 | 20 | PC12 | 16 |
| 1.518CLSFYY | 1.5mm 18 Core LS0H | 13.7 | PD428 | 25 | PC16 | 16 |
| 1.525CLSFYY | 1.5mm 25 Core LS0H | 16.9 | PD428 | 25 | PC16 | 16 |
Note: Please make sure that you order the appropriate PD gland, lockring and clip which are all sold seperately.
Example: For 1.0mm 18C LSOHYY flex, select PD427 gland, 20mm lockring and PC12 Clip.
